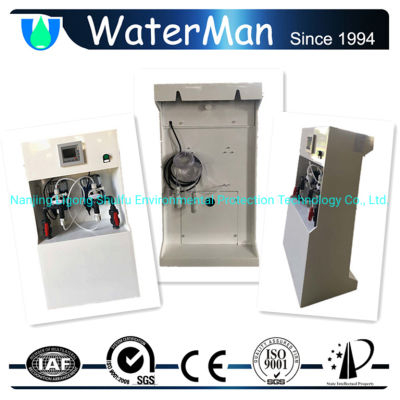

Micro Chlorine Dioxide Generator for Filtered Water 5g/H
ISO9001, CE
Industry
220V
Chlorine Dioxide
Manual Control / Auto Control Option
Plywood Box
CPF-30CX-5
5 gram per hour
Waterman
Made in China
8419200000
4, 000 PCS/Year
Available | Customized Request
Product Description
Place of Origin: Jiangsu, China (Mainland) Model: CPF-30CX-5 Certification: ISO9001, CE Marked EINECS No. 233-162-8 CAS NO. 10049-04-4 Control Mode: Manual / linkage Installation Method: Wall-mounted or vertical Power Supply: 220V/50Hz Main parameters:1. Operating voltage: AC220V plus or minus 10%2. Working temperature: -5 ~ 50 degrees Celsius 3. Relative humidity: 80% 4. Maximum pressure of water-pipe-line: <0.7Mpa 5. There should be no strong electromagnetic field interference around the equipment. 6. Function: Manual / Linkage Residual ClO2 auto-control Flow auto-control (option) Low liquid level alarm function Timing start / stop function Alarm remote transfer 5 NaClO2 + 4HCl = 4ClO2 + 5NaCl + 2H2O NaClO2: industrial sodium chlorite (purity≥78% ) or liquid Activator: industrial first grade compound hydrochloric acid (purity≥31%) or other weak acid or strong acid Two raw chemicals of NaClO2 and HCl are to be inhaled into the reactor proportionally by two metering pumps, in which produce quantitative high-purity ClO2 solution, and then to be dosed directly in the water tank or pressured water pipe together with the dilution water.
The highest outlet pressure of ClO2solution is 0.40Mpa. Raw chemicals conversion rate is higher than 90%. The dosage of ClO2 can be adjusted manually or automatically by receiving 4-20mA signal sent by residual clo2 sensor.
Our main products are 2-chemical and 3-chemical chlorine dioxide generators; gas chlorine dioxide NOX destruction systems; electrolytic sodium hypochlorite generators, and chemical dosing skids.
