Control: Option, Manual/ Flow / Residual ClO2 / PLC control
Raw Material: Option, two / three chemical precursors, e.g NaClO2 and HCl
Power: Electric
Certification: ISO 9001, CE, SGS

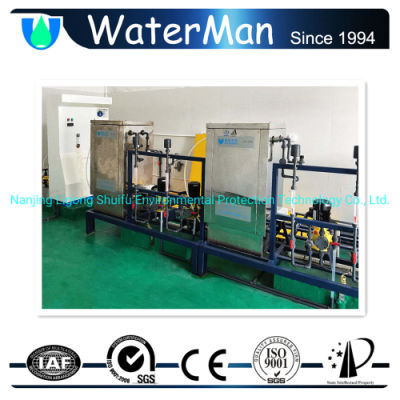

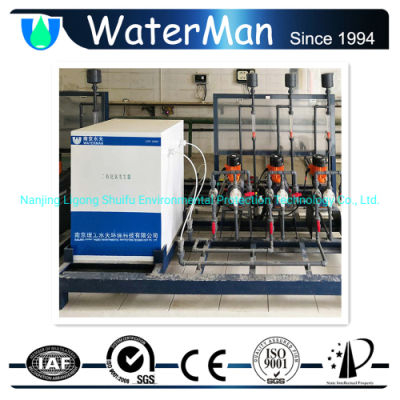

Detailed Photos
Product Parameters
Working temperature: 5 ~ 40 degrees Celsius
Operating voltage: 380V plus or minus 10%
Operating current: <10A
There should be no strong electric field and magnetic field interference around equipment.
Maximum pressure of water-pipe-line: <0.7Mpa
Function: PLC control, Computer Remote Control, Work data records
Manual / Flow / Residual-chlorine-dioxide / PLC control
Low liquid level alarm of precursors
Linkage with water pump
More functions can be customized
Process discription: Two / three precursors are to be pumped in titanium alloy reactor, in which producing high concentration of chlorine dioxide gas-liquid mixture, then dose directly into water pipe / tank for disinfection of water treatment or wastewater treatment. Dosage of clo2 can be adjusted manually or automatically by recieving 4-20mA signal. It allows for several different dosing points to meet the treatment needs as the water conditions change.
Please contact the company for more details.
Our main products are 2-chemical and 3-chemical chlorine dioxide generators; gas chlorine dioxide NOX destruction systems; electrolytic sodium hypochlorite generators, and chemical dosing skids.
